Postby Corsemoto [OP] » August 1st 2011, 8:37pm

In the processing of rebuilding front end on my '04 Astro AWD with Moog idler arms, upper/lower ball joints, inner/outer tie rods, drag link and sway bar links/bushings. One question is regarding the alignment once complete and the "knockouts" in the control arms for camber adjustment. Do these vans already come with the cam bolt kit and and need to modified (hence the "knockout" part) or need an adjustble cam bolt kit like the Moog K6302 installed? I ask because looking at my van, it appears to already have an adjustment kit installed and trying to sort out if I need to order any additional parts and perform any additional work during the front end rebuild. Obviously, I don't want to find out when I'm done or at the alignment shop that I need to install additional parts installed to achieve proper alignment. Thx!

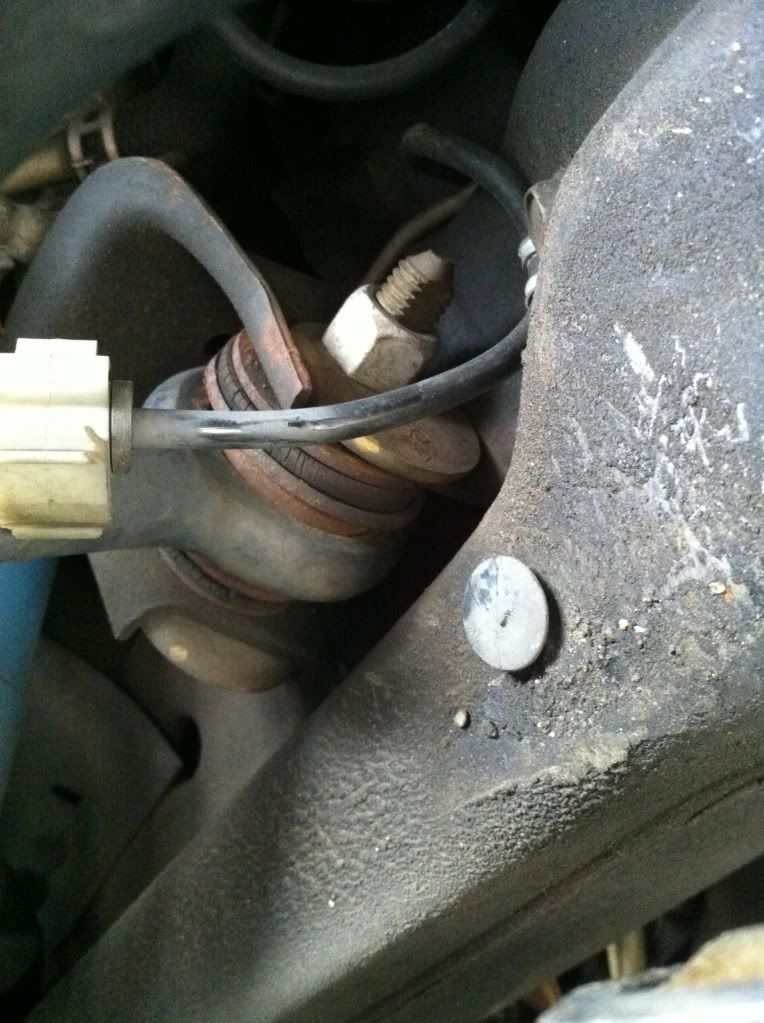

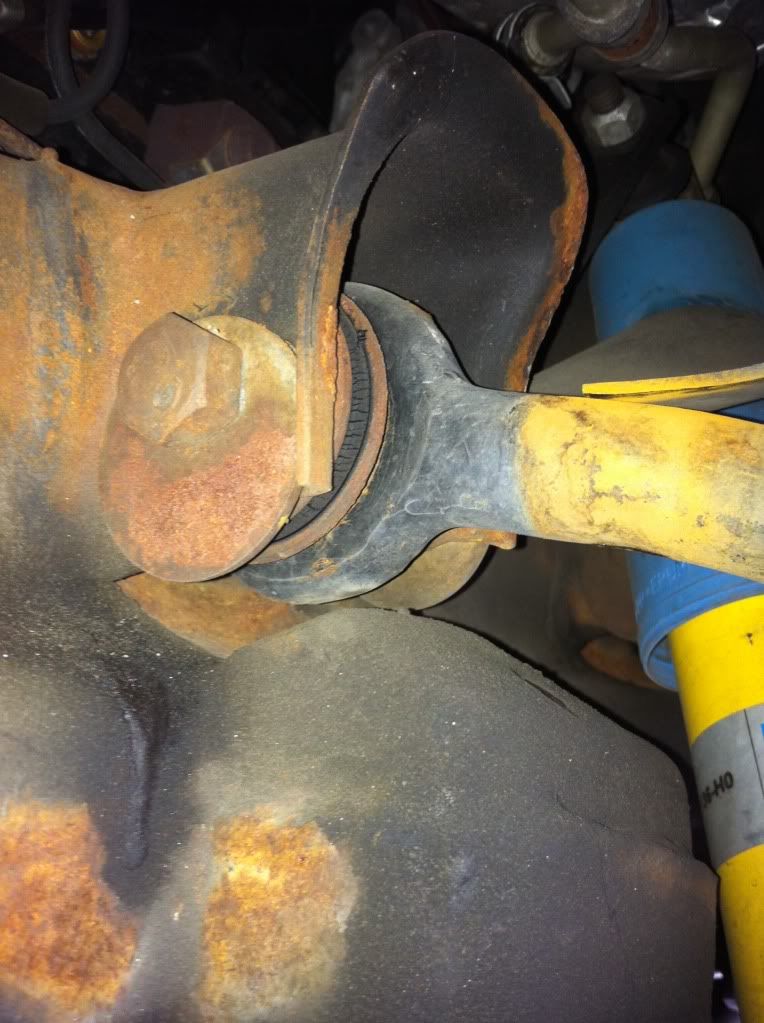

Here are a couple shots of what I have in the upper control arms:


Original Poster [OP]
User avatar
Corsemoto
AstroSafari Pioneer
AstroSafari Pioneer
Firing on 6 Cylinders (L3)
Firing on 6 Cylinders (L3)
Years of Membership: Corsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full yearsCorsemoto has been a member for 12 full years
Posts: 2648
Topics: 39
Images: 13
Joined: June 2008
Alias (AKA):
Van Model Year: 2004
Van Make/Model: Chevrolet Astro
Extra Info: LT AWD
