Postby 97cargocrawler [OP] » February 28th 2014, 8:50am

I'm not the first here to do this conversion but I always find redundant info and tons of photos never hurts. I'm not ready to do the swap yet due to weather conditions outside but the parts have arrived and I wanted to show them. I'm converting my 1997 RWD van to discs from drums. I had already upgraded from stock 9.5" drums to 11" drums.

My Order Details:
------------------------------------------------------------------------
Quantity: 1
Item: Disc Brake Kit Rear - 1 (Single) Piston with 10.5in Rotor
(A117-2)
Rotor Upgrades: Big Bite Cross Drilled and Slotted Rotor
Upgrade($100.00) (99901)

Unit Price: $840.95
Total Price: $840.95
------------------------------------------------------------------------
subtotal: $840.95

Ground shipping is about $60 within the USA. Don't bother with any expedited shipping since these folks take 7-10 days to process and ship your order. By then whatever hurry you were in for this kit has already subsided or you died from spontaneous human combustion (I almost did). Summit Racing and Jegs often offer free shipping on this kit but it may take months longer to receive. I ordered direct from SSBC Performance Brake Systems. Note the extra $100 fee for drilled and slotted "upgraded" rotors.

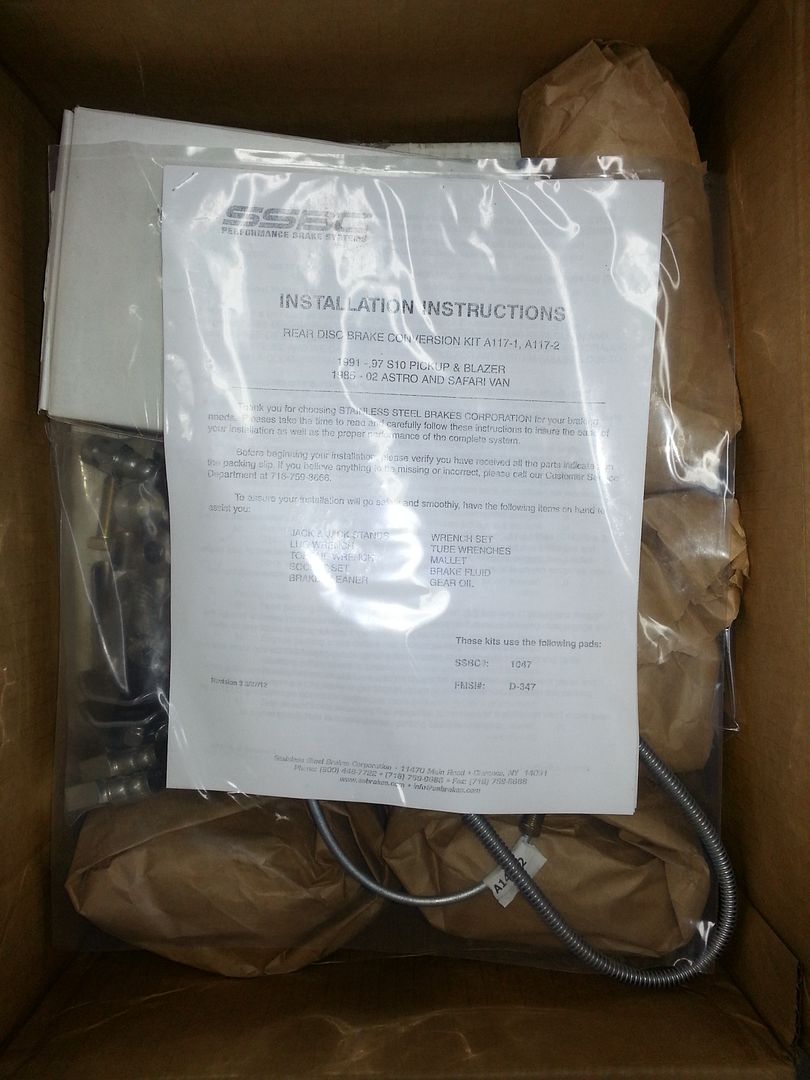

Here's the Kit:









My first thought was the shoes look very tiny and the discs are not very thick! Hmmmm. I hope this system is up to the task of stopping my 35" tires :think:

I'm also converting my front rotors to SSBC drilled and slotted. My front rotors are for a 1500 series Chevy truck, I'm not sure how they compare to stock. It's possible the 1500 series rotors and stock rotors are the same dimensions. Anyway, here are some comparison shots of my new front and rear rotors....

Rear on the left:




Rear on top:



The rears are slightly smaller in diameter:



The front rotors are NOT part of the kit. I had to buy them separately, roughly an extra $300.


The front rotors are about 11.5":


Seen here inside a 17" wheel:


The rear rotors are probably about 11" in diameter. They are not 10.5" like the item description says.

I know the front brakes handle most of the braking but sheeeesh, the rear rotors sure look wimpy in comparison. The surface area and pads are so small!

I'm not upgrading my front calipers just yet. I already have 3500 series (1-ton) Chevy truck calipers up front. NOTE: Stock RWD vans cannot upgrade to 1500, 2500 or 3500 brakes up front without new spindles. I'm purposely not posting my front rotor part numbers so nobody orders the wrong ones by accident.

Before I do this swap I want to take some measurements on stopping distance with my current 11" drums. Weather permitting I will be posting pix of the work involved for the swap in the coming weeks...

Stay tuned.
Original Poster [OP]
User avatar
97cargocrawler
Firing on 8 Cylinders (L5)
Firing on 8 Cylinders (L5)
Years of Membership: 97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years
Posts: 4912
Topics: 42
Images: 1
Joined: December 2011
Location: Near Los Angeles, CA
Gender: Male
Alias (AKA): KING OF OVERKILL
Van Model Year: 1997
Van Make/Model: GMC Safari
Extra Info: 4.3L V6 RWD

  • Similar topics
    Replies
    Views
    Author
  • Rear brake drum to disc conversion
    by Gwicz » March 27th 2021, 1:08pm in Brakes
    1 Replies
    149 Views
    Last post by Gwicz View the latest post
    March 27th 2021, 1:10pm
  • Another Thread About Rear Disc Brake Conversion Options
    by MavMark » February 3rd 2021, 12:27am in Brakes
    16 Replies
    766 Views
    Last post by stent View the latest post
    February 10th 2021, 3:07am
  •
    8
    30
    Last post by AstroSafari.com View the latest post
    April 12th 2021, 5:19am

Re: Rear Drum Brake to SSBC Disc Conversion

Postby 356redux » March 21st 2014, 6:09am

I'm interested to see how this works out for you. I plan on doing a rear disk conversion too. I started with 3/4 ton calipers and they were a big improvement over stock. But I just got some new Wilwood calipers. 2 piston mono block design. Take a look at these if you haven't committed to a front set up. Haven't put them on yet but they look like the real deal.
User avatar
356redux
Firing on 1 Cylinder (L1)
Firing on 1 Cylinder (L1)
Years of Membership: 356redux has been a member for 11 full years356redux has been a member for 11 full years356redux has been a member for 11 full years356redux has been a member for 11 full years356redux has been a member for 11 full years356redux has been a member for 11 full years356redux has been a member for 11 full years356redux has been a member for 11 full years356redux has been a member for 11 full years356redux has been a member for 11 full years356redux has been a member for 11 full years
Posts: 105
Topics: 7
Joined: October 2009
Location: Orlando FL
Alias (AKA):
Van Model Year: 1992
Van Make/Model: Chevrolet Astro
Extra Info: Lowered on 20s

Re: Rear Drum Brake to SSBC Disc Conversion

Postby 97cargocrawler [OP] » March 21st 2014, 6:51am

I'm actually done with the conversion but I'm waiting on SSBC customer service to either come through on a promise or continue to jerk me off. I'm gonna give them another day or so before I form a solid opinion of their company.

I have 1-ton calipers up front now. Normally that's not possible with RWD vans but I have 1500 series truck spindles so I can use calipers from 1500, 2500 or 3500 series trucks.

I have looked at Wilwood but I'm not so sure I will see any improvements up front. Also the added fluid capacity of multiple pistons has me concerned about pedal travel and pressure. I will go into that more when I do the writeup.
Original Poster [OP]
User avatar
97cargocrawler
Firing on 8 Cylinders (L5)
Firing on 8 Cylinders (L5)
Years of Membership: 97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years
Posts: 4912
Topics: 42
Images: 1
Joined: December 2011
Location: Near Los Angeles, CA
Gender: Male
Alias (AKA): KING OF OVERKILL
Van Model Year: 1997
Van Make/Model: GMC Safari
Extra Info: 4.3L V6 RWD

Re: Rear Drum Brake to SSBC Disc Conversion

Postby jkilbert » June 9th 2014, 1:51pm

I've been thinking about rear disc conversion for some more stopping power pulling my boat but wasn't sure which way I wanted to go with it. I kinda fell into the route I'm going. I was at my city garage fueling my ambulance when I saw one of the old wrecked Caprice police cars. They were scrapping the car, I managed to get the whole rear end and cables for FREE. They even cut it out for me. Another plus is he had several boxes of pads, rotors and other stuff he threw in. Last big hurdle will be changing the gearing to match my 3.73's and find the time to do the job. Hope you get you customer non-service issues straightened out....good luck
jkilbert
Fueling (1/2 tank)
Fueling (1/2 tank)
Years of Membership: jkilbert has been a member for 9 full yearsjkilbert has been a member for 9 full yearsjkilbert has been a member for 9 full yearsjkilbert has been a member for 9 full yearsjkilbert has been a member for 9 full yearsjkilbert has been a member for 9 full yearsjkilbert has been a member for 9 full yearsjkilbert has been a member for 9 full yearsjkilbert has been a member for 9 full years
Posts: 53
Topics: 2
Images: 5
Joined: January 2012
Gender: Male
Alias (AKA): jkilbert
Van Model Year: 2000
Van Make/Model: GMC Safari
Extra Info: AWD

Re: Rear Drum Brake to SSBC Disc Conversion

Postby markmitch » June 9th 2014, 2:24pm

If you do this and it works good I would be interested in buying the rear 11 inch drum set up from you if you decide to sell them. And I live in Northern California so the shipping wouldn't be that bad. Let me know Mark
User avatar
markmitch
AstroSafari Pioneer
AstroSafari Pioneer
Firing on 8 Cylinders (L6)
Firing on 8 Cylinders (L6)
Years of Membership: markmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full years
Posts: 5946
Topics: 629
Images: 21
Joined: March 2008
Location: California
Gender: Male
Alias (AKA): 1st gen or frankenvan
Van Model Year: 1989
Van Make/Model: Chevrolet Astro
Extra Info: RS V8 AWD

Re: Rear Drum Brake to SSBC Disc Conversion

Postby Allmntrider » June 9th 2014, 2:55pm

If I'm not mistaken all van rear diff's are off center. S10, caprice, Impala, and other gm vehicles are centered. I first noticed this when I converted a e150 to 4x4 back before fuel skyrocketed.
User avatar
Allmntrider
Fueling (7/8 tank)
Fueling (7/8 tank)
Years of Membership: Allmntrider has been a member for 7 full yearsAllmntrider has been a member for 7 full yearsAllmntrider has been a member for 7 full yearsAllmntrider has been a member for 7 full yearsAllmntrider has been a member for 7 full yearsAllmntrider has been a member for 7 full yearsAllmntrider has been a member for 7 full years
Posts: 89
Topics: 15
Images: 4
Joined: November 2013
Location: Prescott Az
Gender: Male
Alias (AKA): Explorer
Van Model Year: 1999
Van Make/Model: Chevrolet Astro
Extra Info: Lifted awd 3.73 g80

Re: Rear Drum Brake to SSBC Disc Conversion

Postby 97cargocrawler [OP] » June 9th 2014, 4:58pm

11" drums = BADASS stopping power.

I'm not selling mine because chances are they are going back on someday soon.

11" discs with Monte Carlo calipers or whatever **** I have now = F'n GARBAGE.

SSBC can suck a big fat turd. Their products and the customer service are not only a joke but will seriously tempt you to drive to their shop and make them eat the **** they sell. Pile up a few thousand dollars, sprinkle some gasoline on it and set it ablaze before buying any of their crap. Overpriced, underpowered and you can source the kit yourself cheaper.

I would still like to use disc brakes but I need something MUCH more powerful than this junk kit for stock vans. I will have to come up with some other parking brake mechanism...and yes I know my options but I'm looking to switch out the entire drive-train soon so any further mods to what I have is pointless. Whatever larger brakes I use in the future will definitely require a different master cylinder.

Anybody who uses the 11" drums will be thrilled. Adjust the parking brake properly, replace that POS pin that holds the springs with a socket head cap screw.

I'm still way too irritated to finish any sort of write-up on these disc brakes. Obviously.
Original Poster [OP]
User avatar
97cargocrawler
Firing on 8 Cylinders (L5)
Firing on 8 Cylinders (L5)
Years of Membership: 97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years97cargocrawler has been a member for 9 full years
Posts: 4912
Topics: 42
Images: 1
Joined: December 2011
Location: Near Los Angeles, CA
Gender: Male
Alias (AKA): KING OF OVERKILL
Van Model Year: 1997
Van Make/Model: GMC Safari
Extra Info: 4.3L V6 RWD

Re: Rear Drum Brake to SSBC Disc Conversion

Postby markmitch » June 10th 2014, 2:19am

finding the backing plates is like looking for a virgin in a whore house. I tried .
User avatar
markmitch
AstroSafari Pioneer
AstroSafari Pioneer
Firing on 8 Cylinders (L6)
Firing on 8 Cylinders (L6)
Years of Membership: markmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full yearsmarkmitch has been a member for 13 full years
Posts: 5946
Topics: 629
Images: 21
Joined: March 2008
Location: California
Gender: Male
Alias (AKA): 1st gen or frankenvan
Van Model Year: 1989
Van Make/Model: Chevrolet Astro
Extra Info: RS V8 AWD

Re: Rear Drum Brake to SSBC Disc Conversion

Postby chevymaher » June 10th 2014, 2:38am

markmitch wrote:finding the backing plates is like looking for a virgin in a whore house. I tried .

Stop looking in the whore house for the backing plate you'll do better.
User avatar
chevymaher
Team Leader
Team Leader
Firing on 8 Cylinders (L7)
Firing on 8 Cylinders (L7)
Years of Membership: chevymaher has been a member for 10 full yearschevymaher has been a member for 10 full yearschevymaher has been a member for 10 full yearschevymaher has been a member for 10 full yearschevymaher has been a member for 10 full yearschevymaher has been a member for 10 full yearschevymaher has been a member for 10 full yearschevymaher has been a member for 10 full yearschevymaher has been a member for 10 full yearschevymaher has been a member for 10 full years
Posts: 14249
Topics: 91
Images: 94
Joined: November 2010
Gender: Male
Alias (AKA): chevymaher
Van Model Year: 1994
Van Make/Model: GMC Safari
Extra Info: SLE RWD Mercruiser

Re: Rear Drum Brake to SSBC Disc Conversion

Postby Lumpy » June 10th 2014, 3:09am

I think you guys have stumbled onto a great idea.

Auto parts with strip club. Call it -

"The LAP Club".

"Sir, that air filter will be $124."

""Sure, whatever. Is Sheila working today?""


Lump
User avatar
Lumpy
Deprived Privileges
Deprived Privileges
Firing on 8 Cylinders (L7)
Firing on 8 Cylinders (L7)
Years of Membership: Lumpy has been a member for 10 full yearsLumpy has been a member for 10 full yearsLumpy has been a member for 10 full yearsLumpy has been a member for 10 full yearsLumpy has been a member for 10 full yearsLumpy has been a member for 10 full yearsLumpy has been a member for 10 full yearsLumpy has been a member for 10 full yearsLumpy has been a member for 10 full yearsLumpy has been a member for 10 full years
Posts: 10996
Topics: 261
Joined: April 2010
Location: Phoenix AZ USA
Gender: Male
Alias (AKA):
Van Model Year: 1989
Van Make/Model: Chevrolet Astro
Extra Info: 11 in. lift Camo

Re: Rear Drum Brake to SSBC Disc Conversion

Postby Bis » August 7th 2014, 4:55am

despite all difficulties encountered... this thread is full of WIN.

:lol:
✔ Recovering 3-Time ex-Aerostar owner since 1996.
✔ RC Hobbyist and Dance music nut.
✔ Geeky Astroholic.
ツ Glad to be of help! ツ

User avatar
Bis
Firing on 3 Cylinders (L1)
Firing on 3 Cylinders (L1)
Years of Membership: Bis has been a member for 9 full yearsBis has been a member for 9 full yearsBis has been a member for 9 full yearsBis has been a member for 9 full yearsBis has been a member for 9 full yearsBis has been a member for 9 full yearsBis has been a member for 9 full yearsBis has been a member for 9 full yearsBis has been a member for 9 full years
Posts: 399
Topics: 30
Images: 1
Joined: April 2011
Location: Delaware
Gender: Male
Alias (AKA): Bis
Van Model Year: 2003
Van Make/Model: Chevrolet Astro
Extra Info: LS 4.3L V6 RWD

Re: Rear Drum Brake to SSBC Disc Conversion

Postby chevymaher » August 7th 2014, 11:58am

Bis wrote:despite all difficulties encountered... this thread is full of WIN.

:lol:

Glad to see you getting your van back together. Hope it turns out as nice as your last one. Congrats.
